Closed Loop Conveying Systems
Aptech’s own Closed Loop Conveying (CLC) System is the answer to many customers’ problems. It is the ideal method of pneumatically conveying hygroscopic, sterile, perishable and hazardous products such as sugar, starch, potato/milk powder and oxidising powders where product exposure to unconditioned gas can cause product degradation.
Closed Loop Conveying Systems Overview
Every system is designed specifically for each customer’s application. They are based on proven designs and typically consist of an enclosed loop of pipework limiting conveying gas changes within the system.
For a dry air CLC, a small dehumidifier ‘tops up’ air lost or deliberately purged from the closed system. This design allows economically sized dehumidifiers to be used for large systems with a large air/gas conveying volume.
As a result, the conveying air/gas is of a consistent quality and limits introduction of atmospheric air with its varying levels of moisture and contaminants. The result is product which remains sufficiently dry to inhibit mould growth or limit reaction with air and promote consistently good flow characteristics.
Storing and conveying in dried air is proven to solve handling problems, vastly reduces downtime and makes economic sense. It avoids caking, contamination, spoiling, and loss of product.
The sealed circuit can be designed to a products explosion pressure rating satisfying the explosion risk. This allows the safe handling of explosive product without the need for explosion panels which often do not fit in with a factory’s layout, position or design.
The different CLC system advantages are summarised below:
Sealed System
- No airborne contaminants
- Contained emissions
- Clean enclosed method of conveying
- Re-circulating gas = Economic Dry Air Conveying
- Economic inert Gas Conveying
- Multiple destinations & single common filter
Nitrogen/Inert Gas Conveying
- Hazardous products transported safely
- Explosion panels and venting eliminated
- Economic conveying by recirculation – minimal gas usage
Dehumidified Air/Nitrogen/Inert Gas
- Dehumidified Air/No caking/agglomerating
- Microbiological growth inhibited – ideal for food products
- Product stays in good condition dry & free flowing
- Reduced maintenance & cleaning
- No condensation or need to lag/insulate pipes
- Improved filter performance
- Sterile Air Conveying
- HEPA filtered air is introduced to the system to ensure biological contamination is eliminated
- We have designed systems with the capability of being 100% gas sterilised and featuring ASME BPE designs

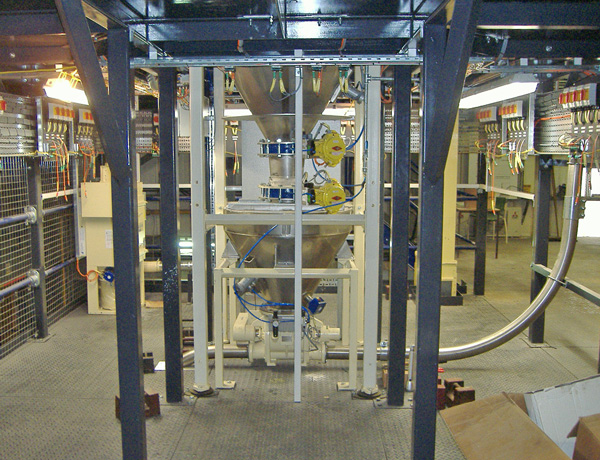

Some examples of Closed Loop Conveying Systems
Related Services
Vacuum Conveying Systems
A basic vacuum conveying system uses a metering device at the inlet, a pipeline, receiver and exhauster.
Pressure Conveying
Conventional lean phase pneumatic conveying systems employing a blower, metering valve, conveying pipeline, receiver and vent filter.
Filterless Closed Loop Conveying
Closed loop (usually vacuum) conveying, incorporating a cyclone separating receiver without a filter.
Velocity Control Conveying
An additional feature to a pressure conveying line.
Miscellaneous Applications
At Aptech, we have a wide range of miscellaneous conveying applications, such as Powder Pumping.
